4.7 Inch Industrial Smartphone Wireless Handheld Android PDA Barcode Scanner 4G Data Collector

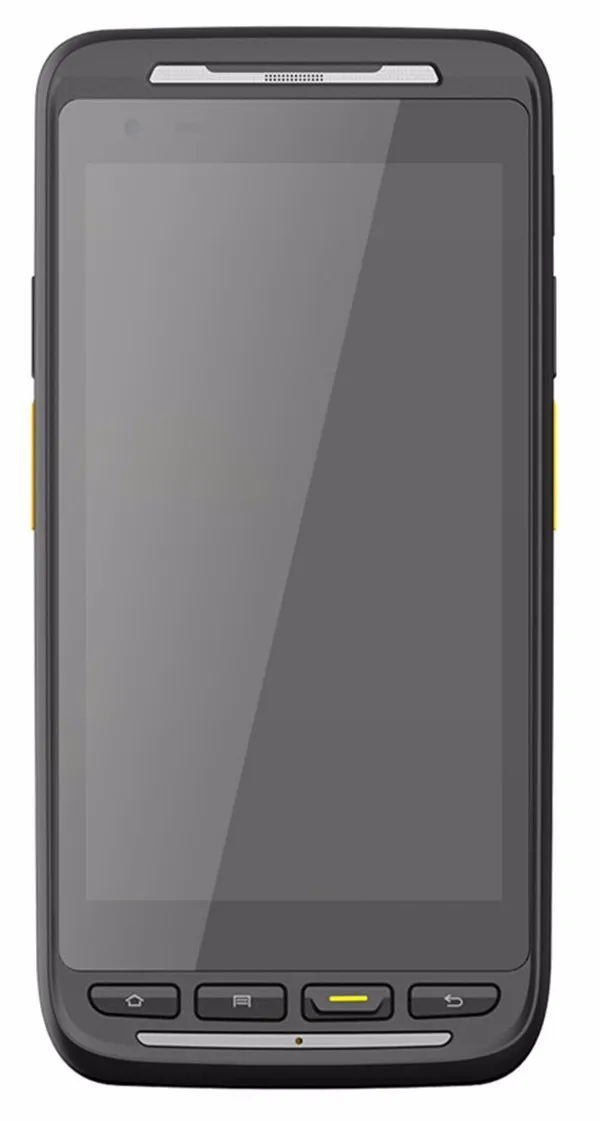

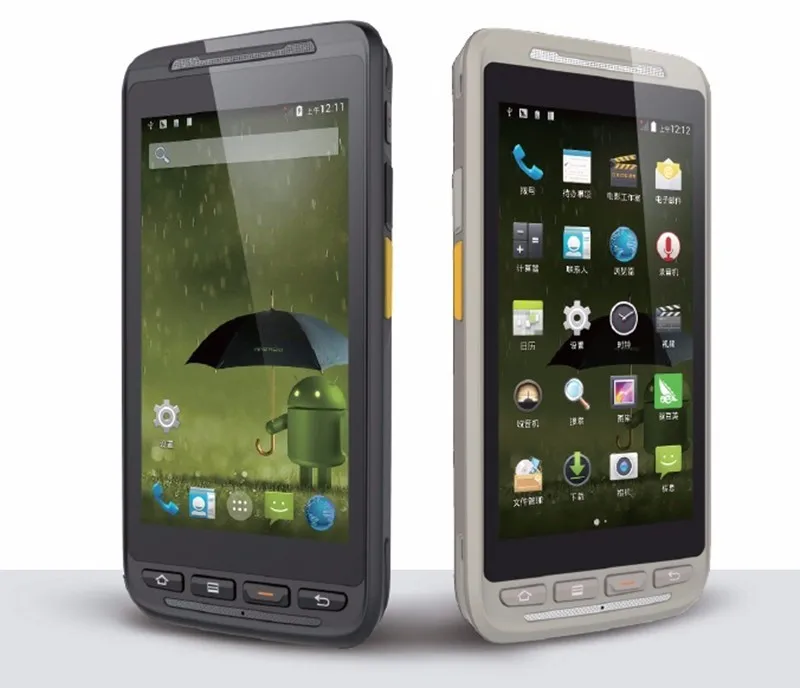

iData 50 Large Screen Mobile Computer
4G(TD-LTE/FDD-LTE), 5G Wi-Fi
<1> camera module(8 million pixels)
Faster and more stable wireless data transmission.
4G network (TD-LTE/FDD-LTE) It provides 4G network for faster data transmission on
5G Wi-Fi It provides 5G Wi-Fi to increase transmission rate by 300% with dual
transmission switch to solve congestion, conflict and interference problems.
More powerful and efficient data collection.
It supports the most powerful barcode scan engine, NFC, GPS, camera and the
other AIDC methods to improve accuracy and speed of data collection.
It is easier to be used and more portable.

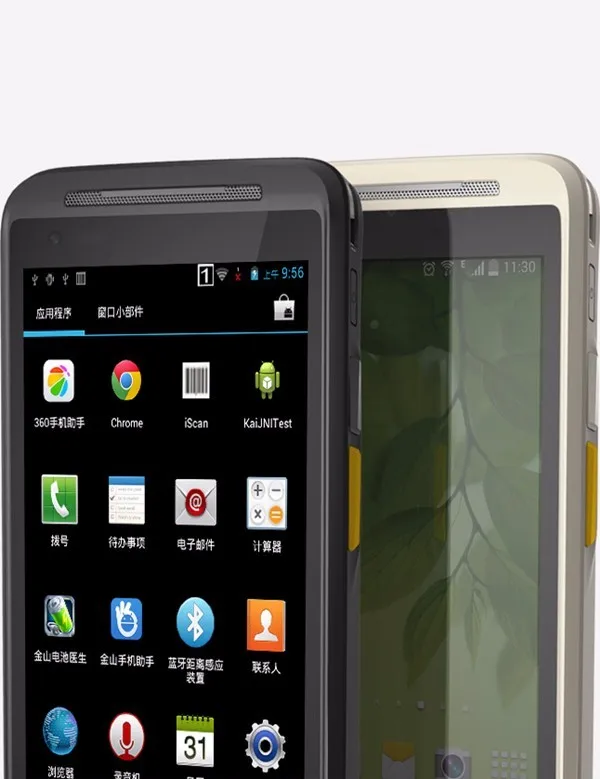

4.7-inch HD screen with full viewing angle and touch panel to make work efficient
Suitable for one hand operation with ultra-high-definition display of 1280*720 resolution. The touch screen uses industrial-grade ultra-sensitive capacitive screen to support gloves and wet hand operation.
Advanced Android OS + Quad-core CPU It has Android 5.1 operating system with quad-core processor to provide top speed operation platform.
It is very portable to make work easier It weighs only 230g including the battery, which makes it the most portable device in the industry. It can be easily kept in a pocket and be used for long time without fatigue with its ergonomic design.

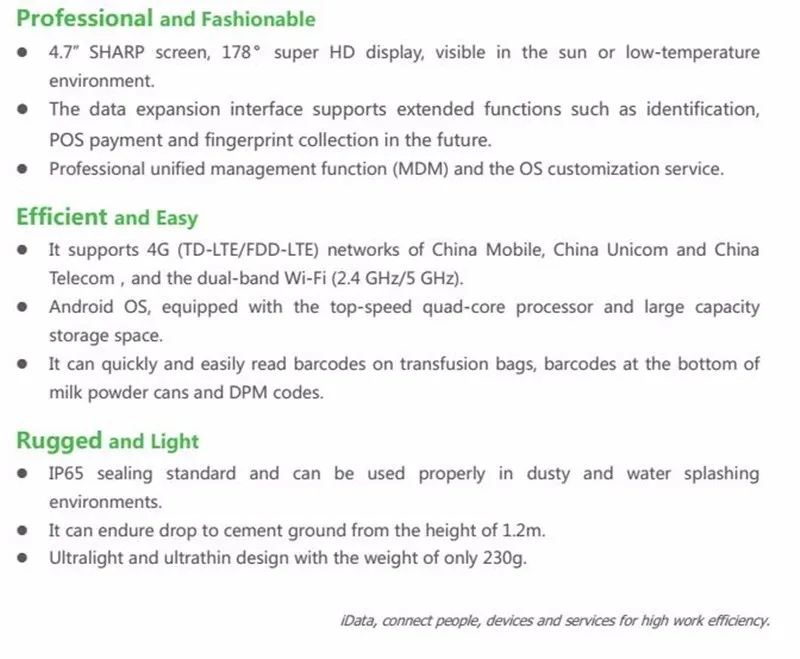

Professional and Fashionable
l 4.7”SHARP screen, 178 ° super HD display, visible in the sun or low-temperature
l The data expansion interface supports extended functions such as identification,
POS payment and fingerprint collection in the future.
l Professional unified management function (MDM) and the OS customization service.
Efficient and Easy
l It supports 4G (TD-LTE/FDD-LTE) networks of China Mobile, China Unicom and China
Telecom,and the dual-band Wi-Fi (2.4 GHz/5 GHz).
l Android OS, equipped with the top-speed quad-core processor and large capacity
l It can quickly and easily read barcodes on transfusion bags, barcodes at the bottom of
milk powder cans and DPM codes.
Rugged and Light
l IP65 sealing standard and can be used properly in dusty and water splashing
l It can endure drop to cement ground from the height of 1.2m.
l Ultralight and ultrathin design with the weight of only 230g.
iData 50 Datasheet
iData, connect people, devices and services for high work efficiency.

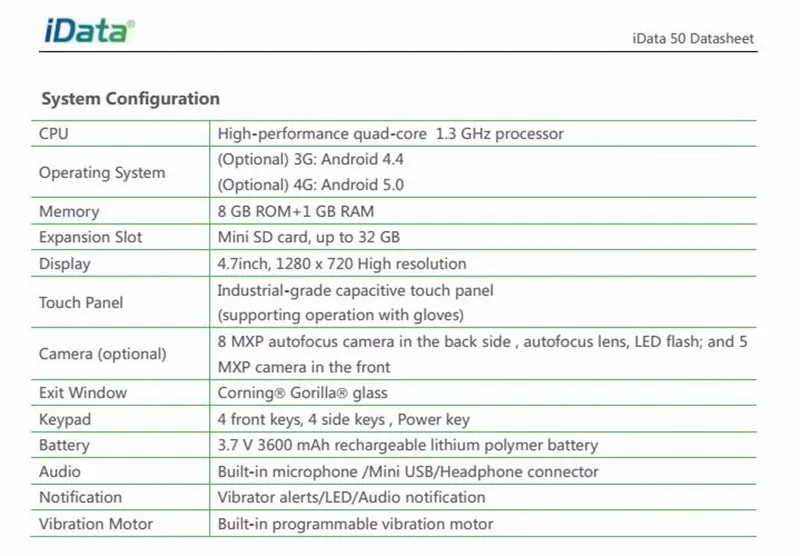

CPU High-performance quad-core 1.3 GHz processor
(Optional) 3G: Android 4.4
(Optional) 4G: Android 5.0
Memory 8 GB ROM+1 GB RAM
Expansion Slot Mini SD card, up to 32 GB
Display 4.7inch, 1280 x 720 High resolution
Industrial-grade capacitive touch panel
(supporting operation with gloves)
8 MXP autofocus camera in the back side , autofocus lens, LED flash; and 5
MXP camera in the front
Exit Window Corningâ Gorillaâ glass
Keypad 4 front keys, 4 side keys , Power key
Battery 3.7 V 3600 mAh rechargeable lithium polymer battery
Audio Built-in microphone /Mini USB/Headphone connector
Notification Vibrator alerts/LED/Audio notification
Vibration Motor Built-in programmable vibration motor
Dimensions (LxWxD) 150 mm×73.5 mm×16 mm (head 24mm thickness)
Weight 230 g (battery included)
850/900/1800/1900 MHz GSM
(Optional) 3G: GPRS/WCDMA 2100 MHz
(Optional) 4G: TD-LTE, FDD-LTE, WCDMA 2100/1900/850MHz, EVDO 800
(Optional) 3G: Wi-Fi 802.11b/g/n
(Optional) 4G: Wi-Fi 802.11b/g/n/ac(Dual-band Wi-Fi: 2.4G+5G)
Bluetooth Bluetooth 4.0
GPS (optional) Supporting GPS
Development Tools Android SDK+ JDK+Eclipse
Operating Temp. -10C ~ 50C (14F to 122F)
Storage Temp. -20C~ 60C (-4Fto 140F)

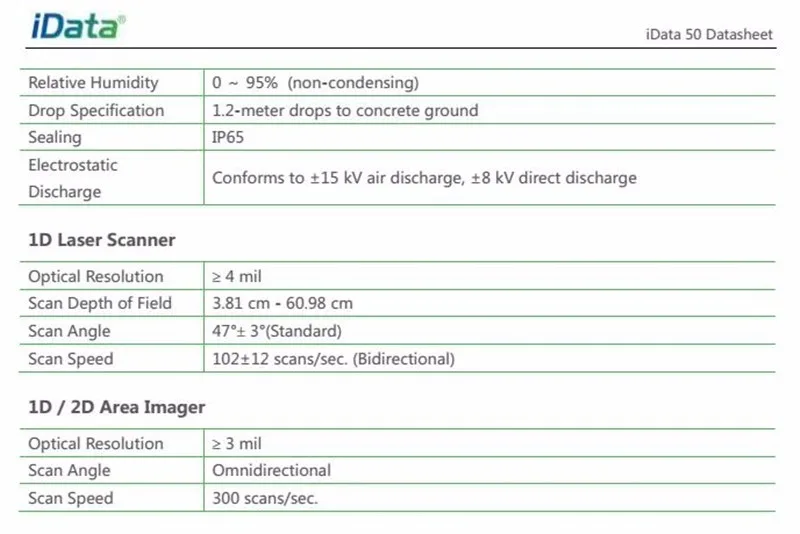

Relative Humidity 0-95% (non-condensing)
Drop Specification 1.2-meter drops to concrete ground
Conforms to ±15 kV air discharge, ±8 kV direct discharge
1D Laser Scanner
Optical Resolution ³ 4 mil
Scan Depth of Field 3.81 cm – 60.98 cm
Scan Angle 47°± 3°(Standard)
Scan Speed 102±12 scans/sec. (Bidirectional)
1D / 2D Area Imager
Optical Resolution ³ 3 mil
Scan Angle Omnidirectional
Scan Speed 300 scans/sec.

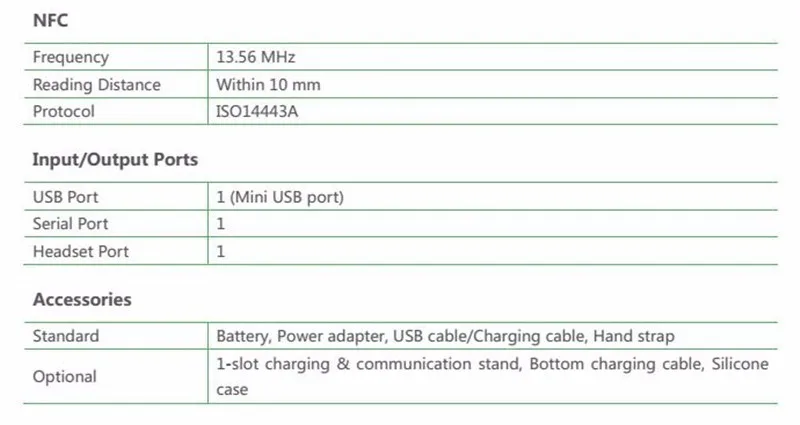

Frequency 13.56 MHz
Reading Distance Within 10 mm
USB Port 1 (Mini USB port)
Serial Port 1
Headset Port 1

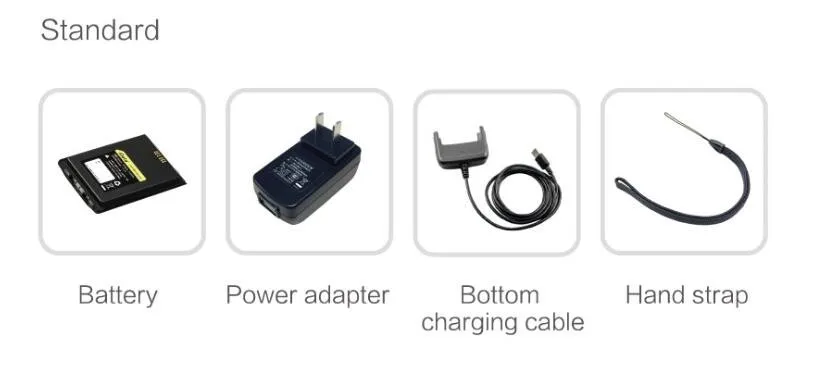

Standard Battery, Power adapter, USB cable/Charging cable, Hand strap
1-slot charging & communication stand, Bottom charging cable, Silicone
